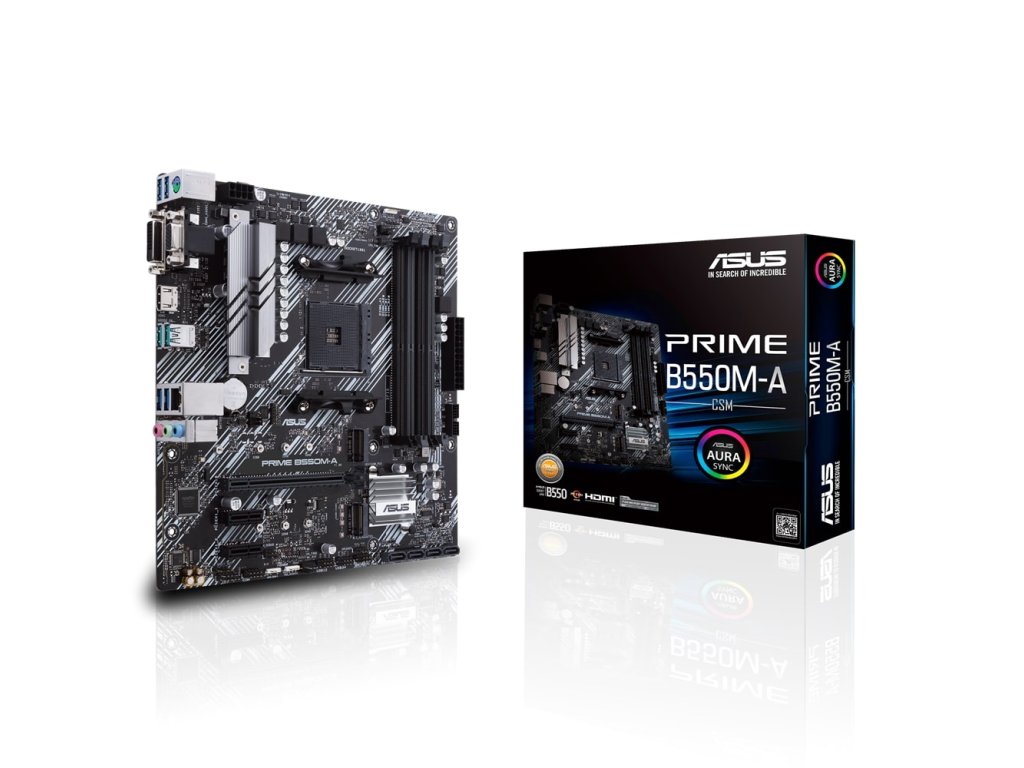

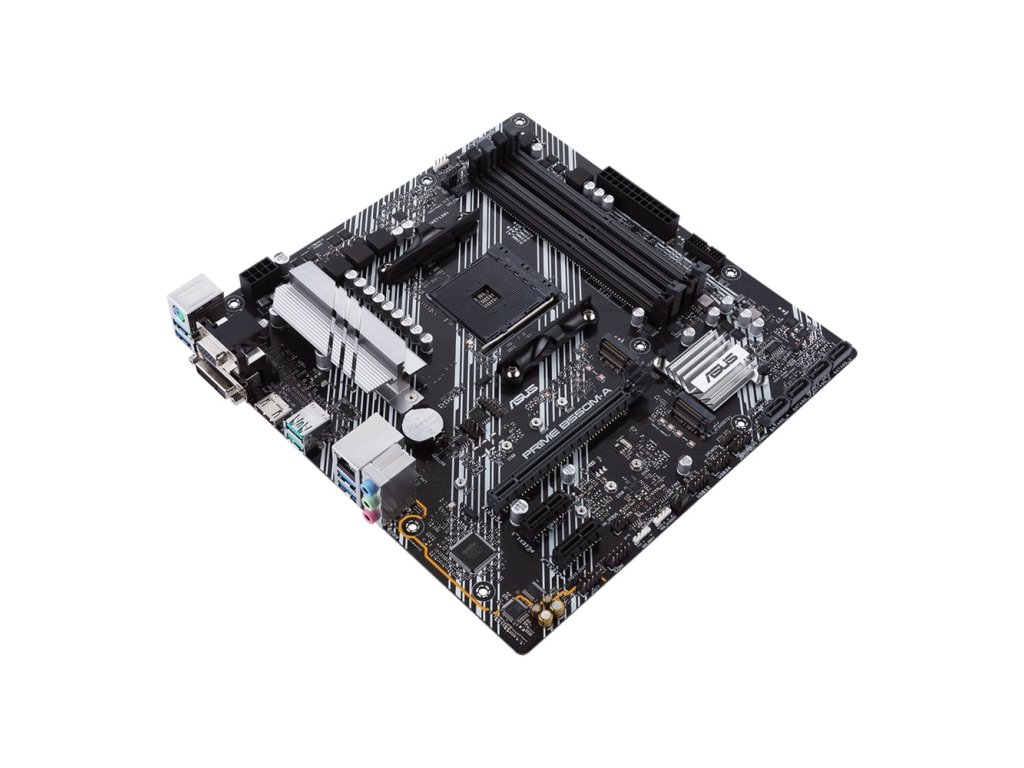

ASUS PRIME B550M-A/CSM

Podrobný popis

Chipset: AMD B550 Rozměrový formát: mATX Form Factor (244 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *AMD Ryzen™ 4000 G-Series Desktop Processors - 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU Grafická karta: Integrated Graphics Processor (na základě procesoru) *1x D-Sub *1x DVI-D *1x HDMI 2.1(4K@60HZ) Zvuková karta: *Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC Síťová karta: *Realtek RTL8111H 1Gb Ethernet Rozšiřující sloty: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors *1x PCIe 4.0 x16 (x16 mode) *AMD Ryzen™ 4000 G-Series Desktop Processors *1x PCIe 3.0 x16 (x16 mode) *AMD B550 Chipset *2x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: *4x SATA 6Gb/s port(s) M.2: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : *1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support *AMD Ryzen™ 4000 G-Series Desktop Processors : *1x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support *AMD B550 Chipset *1x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support USB: *zadní USB porty ( celkem 6 ) *2x USB 3.2 Gen 2 port(s)(2 x Type-A) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A) Interní porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *2x Chassis Fan connector(s) *2x Aura RGB Strip Headers *1x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) *1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) *1x SPI TPM header *4x SATA 6Gb/s connector(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header *1x Speaker connector Externí porty: *1x PS/2 keyboard/mouse combo port(s) *1x DVI-D *1x D-Sub *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (teal blue) (2 x Type-A) *4x USB 3.2 Gen 1 (blue) Type-A *3x Audio jack(s) Obsah balení: *1 x ACC Express Activation Key Card *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *User manual *1x M.2 SSD screw package(s) BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/All-series/PRIME-B550M-A-CSM https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
